Détails sur le produit:
|
The Neopower 120A Right-Angle Plug is engineered for the most demanding energy storage fast-charging applications. This heavy-duty connector delivers a massive 120A continuous current at 1000V DC, enabling unprecedented charging speeds for large-scale battery systems. Its ergonomic 90-degree design provides a secure, low-profile connection, making it the ideal solution for installations where space is at a premium and cable management is critical. Built with pure copper contacts for superior conductivity, this plug is designed to minimize energy loss and heat buildup, ensuring maximum safety and efficiency during high-power cycles.
Extreme 120A Current Rating: Designed for heavy-duty power transfer, facilitating ultra-fast charging and discharging of large-capacity battery containers.
Space-Saving 90° Design: The right-angle body allows the cable to exit flush with the mating panel, significantly reducing cable strain and clearance requirements.
High-Conductivity Copper Contacts: Utilizes silver-plated pure copper terminals to ensure the lowest possible electrical resistance and optimal thermal performance under maximum load.
Superior IP68 Sealing: Provides a fully dust-tight and waterproof connection when paired with its corresponding Neopower 120A socket, guaranteeing reliability in any environment.
Secure Locking Mechanism: Integrates an advanced anti-disassembly technology to prevent accidental disconnection from vibration or cable tension.
Color-Coded for Safety: Available in Red, Orange, and Black for clear, error-proof identification of different circuits and polarities.
An essential component for high-power and mission-critical systems:
Large-Scale Energy Storage Containers
Commercial and Industrial Battery Backup Systems
High-Power DC Charging Stations
Utility-Scale Power Distribution Units
Terminating heavy-gauge (4-6AWG) power cables for high-current equipment.
| Specification | Value |
| Component Type | Right-Angle Plug (Male Connector) |
| Rated Current | 120A |
| Rated Voltage | 1000V DC |
| IP Rating (When Mated) | IP68 |
| Fire Resistance Rating | UL94-V0 |
| Operating Temperature | -40°C to +125°C |
| Housing Material | Nylon |
| Hardware Material | Copper |
| Surface Coating | Silver Plated |
| Wire Range | 4-6AWG |

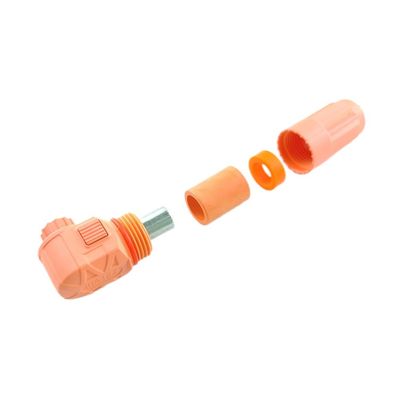

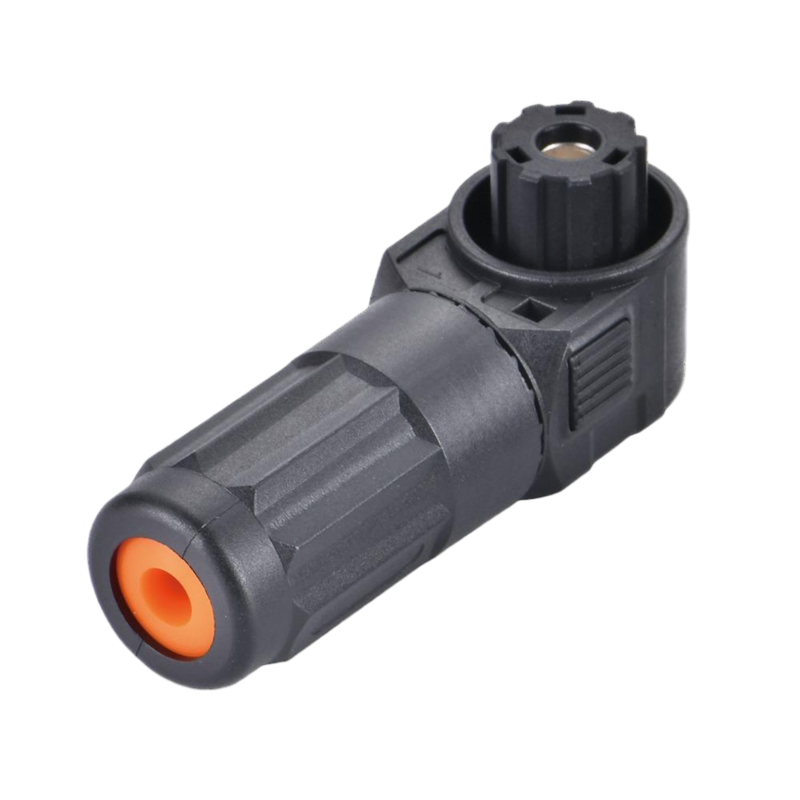

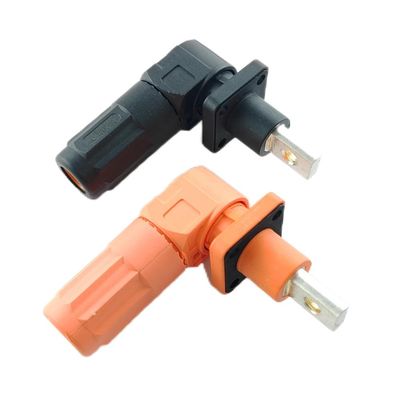

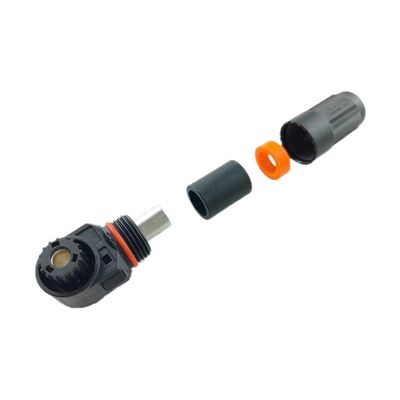

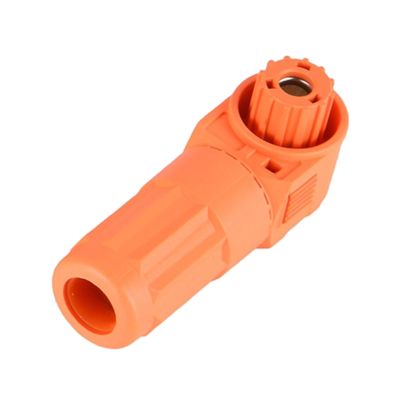

Product Pictures:
Company Profile
NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.
NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.
Certifications & Approvals
The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
